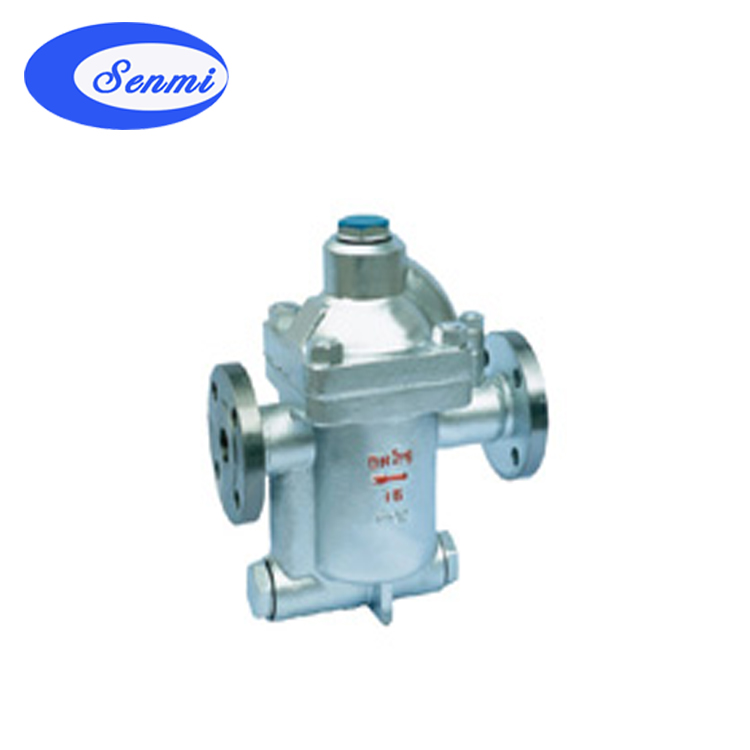

鐘型浮子式蒸汽疏水閥產品介紹
鐘型浮子式蒸汽疏水閥廣泛用于石油、化工、印染 、織染、紡織、食品等各種工礦各種高中壓蒸汽設備系統。
結構特點：1、該閥采用先進的雙閥座機構，主副復閥滿足高壓力、大排量而體積小。
2、對凝結水德產生量 適應性強， 可間歇排水，汽水分離可靠。
3、背壓率高（≤80%），可有效回收凝結水。
4、閥內全不銹鋼零件全安裝在閥蓋上，維修方便，防腐蝕性強
Introduction:ER steam trap with two valve bases enjoys
Extensive applications in petroleum chemical industries。Printing pharmacy，textile
Foods and all kinds of high and middle pressure steam equipments.
Structures：1.This kind of trap adopts two valve bases；bath can meet the need of high pressure ,large discharging amount and small volume
2.Strong ability to adapt to the production of condensed water,reliable separation of ges and water .
3.High rate of back pressure （≤80%），Able to recycle condensed water。
4.Stainless steel parts fixed on the valve cover to facilitate maintenance ,strong abilities to resist corruption.
鐘型浮子式蒸汽疏水閥主要零件材料和性能參數 Main parts and specifications
|
主要零部件材料表
Main patrs materials
|
Body/Bonnel
閥體、閥蓋
|
WCB、WC6
|
性能參數
Performance parameter
|
Lowest working pressure
最低工作壓力
|
10.0MPa
|
|
Clock float
鐘型浮子
|
Austria type body stainless steel
奧式體不銹鋼
|
The lowest supercooling degree
最小過冷度
|
0℃
|
|
Valve seat /valve cote
閥座、閥芯
|
Stainless alloy steel
不銹合金鋼
|
Highest pemission back pressure rate
最高允許背壓率
|
＞85%
|
|
In sets Filters
內置過濾網
|
Stainless steel
不銹鋼
|
Highest pemissible temperature
最高允許溫度
|
鑄鋼425% Cast steel425%
鉻鉬鋼555%Cast irons 555%
|
鐘型浮子式蒸汽疏水閥性能參數
|
